Recognition rules setup

elDoc IDP performs document processing using recognition rules (also referred as "Recognition form" or "RecoForm") defined in the system.

This page describes how to setup RecoForms:

Recognition form creation

You can create unlimited number of the recognition forms in the system. In order to create a new recognition form - press +Add button on the Recognition forms management page.

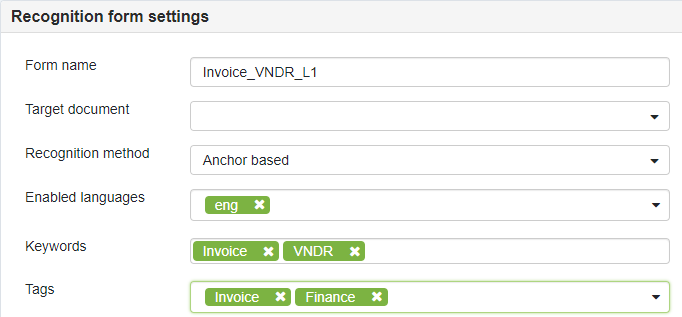

Recognition form settings

Form name (required field) - name which is distinctive and obvious for corresponding document.
NOTE: Form name should be a unique name.

Target document (optional) - select Document type from drop-down list if it is required to perform Conversion after the document recognition is completed. If Conversion is not required, leave the field blank.

Recognition method - defines type of recognition approach to be applied for the specific RecoForm. By default it is set to "Anchor based".

• Anchor based - is recommended to apply for documents of standard layout / document with fixed table format (e.g. invoices, purchase orders, service reports, transcripts, etc).
• Regex-based - is recommended to apply for documents of not standard layout / document without fixed table format (e.g. boarding pass, payment instructions, etc).
• Custom plugin based - custom RecoForms for handling non-trivial document types.

Enabled languages – select language(s) from drop-down list to be applied during the recognition process. By default it is set to English.

Keywords (required field) - lists keywords which are associated with a particular type of the document and/or minus key words that are not associated with a particular type of the document (should be present on the page). Adding keywords and/or minus keywords to the specific RecoForm helps to optimize Recognition Queue processing. The following rules are applied during the recognition process:

• Keywords (inclusive) - listed as normal words. The rule that all keywords have to be present on the document in order to include this RecoForm into the IDP phase;
• Minus keywords (exclusive) - listed as words starting with "-" minus sign (e.g.: -invoice). In case any of the listed minus keyword is present on the document page - the given RecoForm will be excluded from the IDP phase.

Keywords also support regex when used with prefix "regex:", e.g.:

• regex:invo[i1l]ce - Regex-based keyword which handles cases like invoice, invo1ce and involce;
• -regex:invo[i1l]ce - Regex-based minus keyword which handles cases like invoice, invo1ce and involce;

Regex-based keywords follow general keywords rules and support general regular expression syntax;

Tags - defines tags assigned to the RecoForm. Tags assignment helps to optimize documents processing by telling system which RecoForms should be used for the document processing. System shortlists RecoForms which contain all assigned tags on the Recognition Document (one or several) and processes document using only shortlisted by tags RecoForms.

Document sample upload

Document sample is required by RecoForm in order to define recognition rules by marking document's layout.

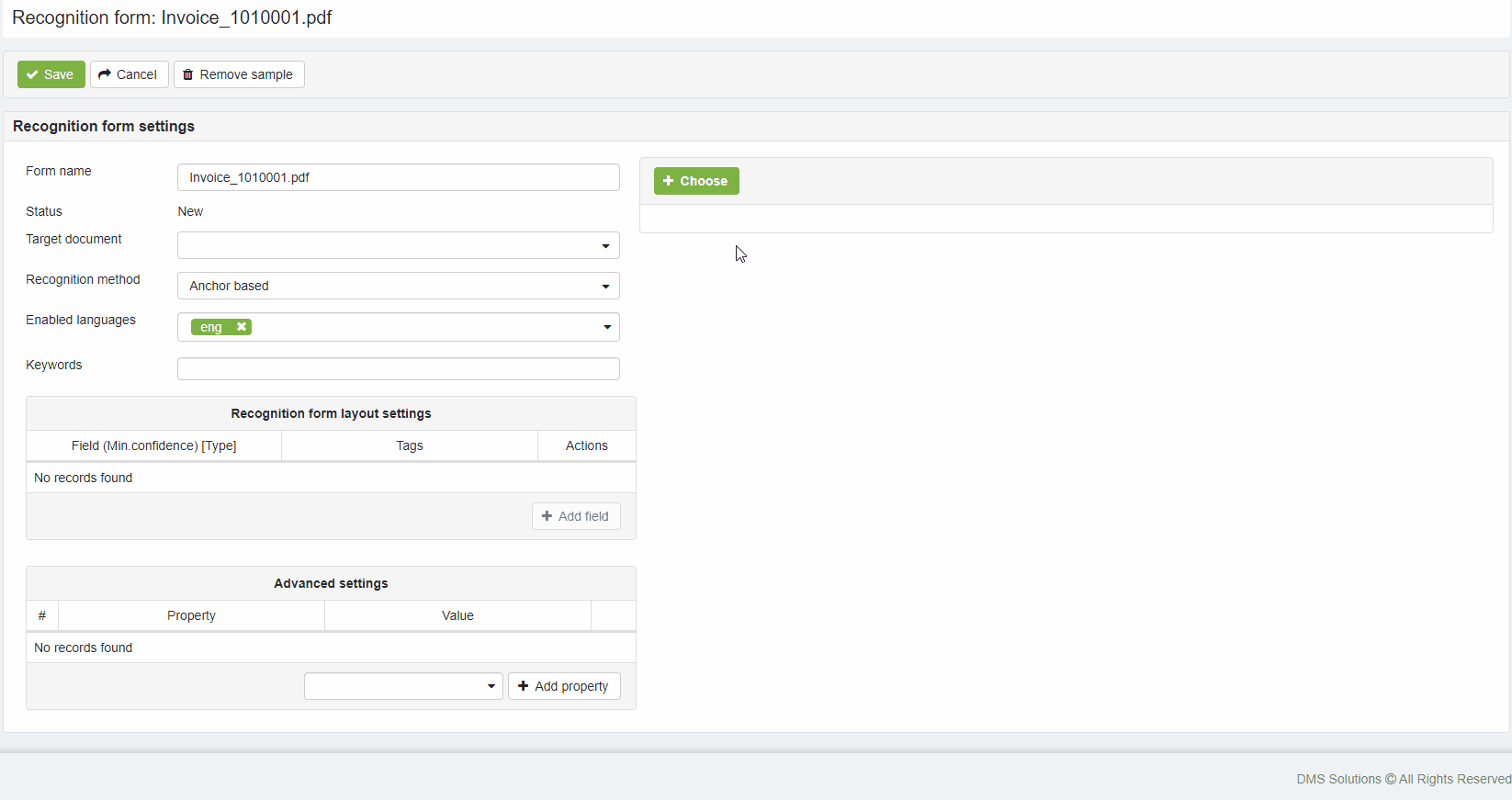

1) Once new RecoForm is created you need to provide document sample which the given RecoForm will be processing by extracting its data.

• Press +Choose button to upload document sample;
• Press Remove sample button to remove attached sample.

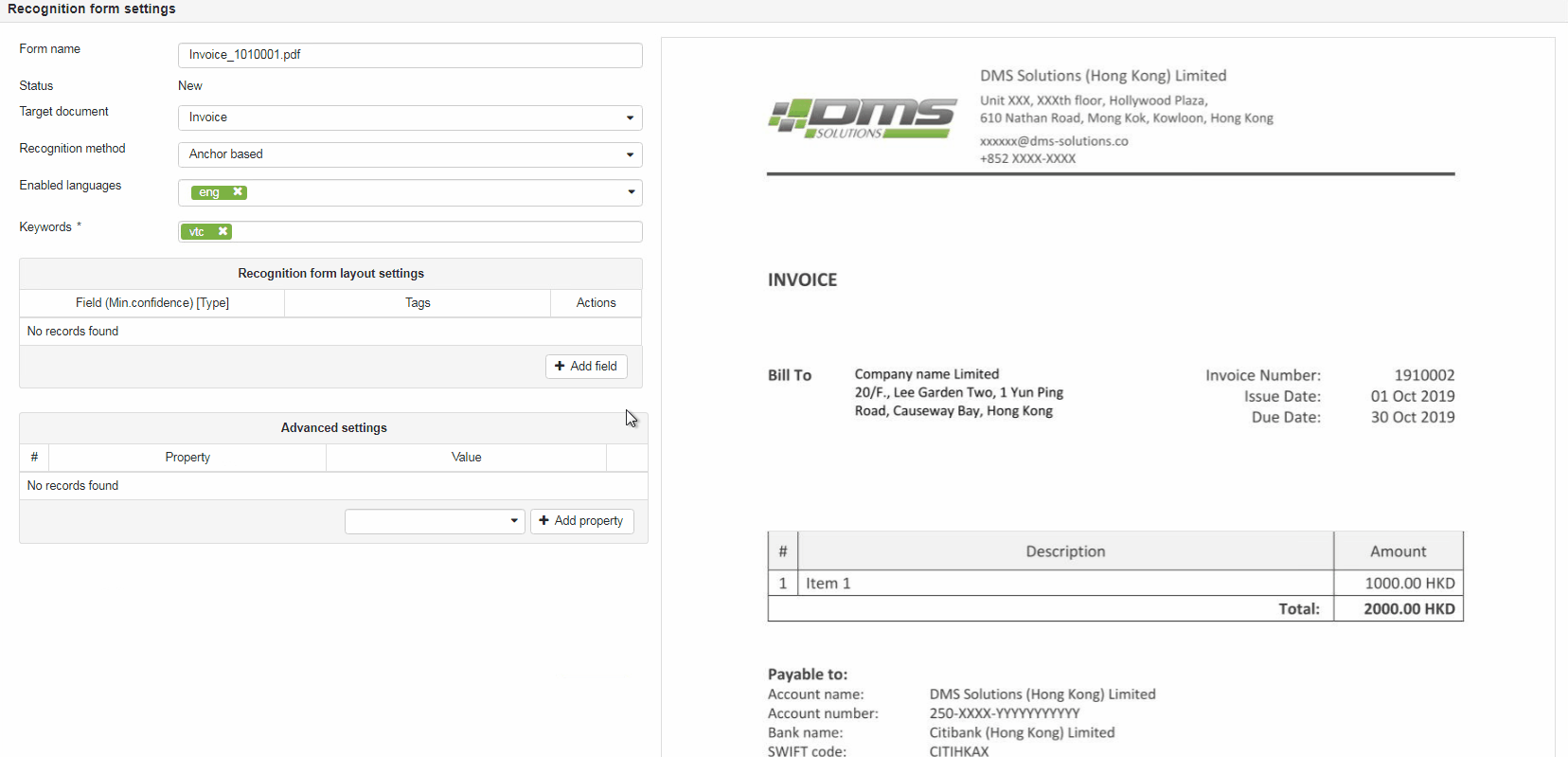

2) Uploaded Document sample is displayed at the right side of the Recognition form page.

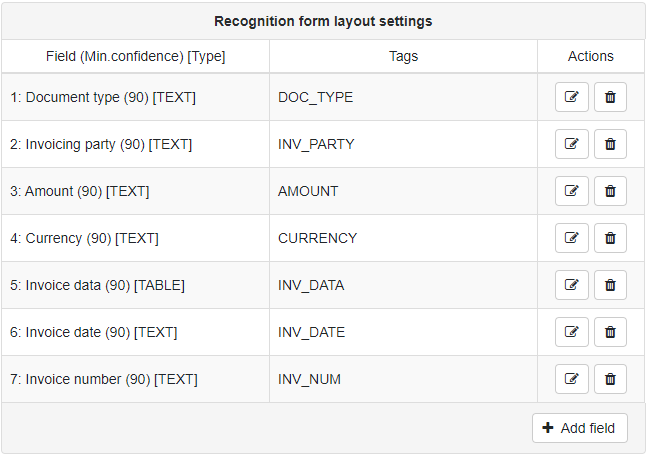

Recognition form layout settings

Recognition form layout settings area used for defining document layout and tells elDoc IDP system which data has to be extracted from the document. To begin with layout settings press the Add field button to add field what will add new field to the layout settings area.

Pressing the +Add Field button also adds 2 rectangular markers on the Document sample preview area that should be mapped (marked over) to the field value region (pink filled) and field anchor (green filled).

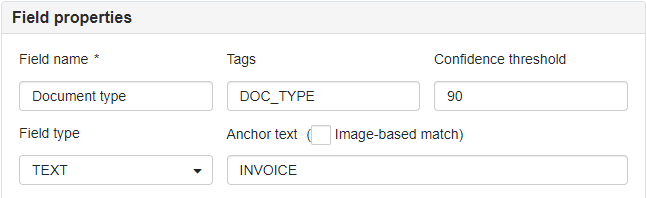

Field properties

Field name – defines user-friendly field name which describes the value which should be extracted from the document (e.g. InvoiceNumber, IssueDate, TotalAmount etc.)

Tags - defines field tag(s) for programmatic access to the retrieved values via API. In case Conversion phase is enabled for this RecoForm (Target document is set) tag(s) should match with the respective tag(s) on the Document form defined via "Document form -> Form builder" page.

Confidence threshold - defines desired min. confidence level for the field (in percentage from 0 to 100). For the critical fields it is recommended to set value above 85-90. For the optional fields this value can be set to 0.

Field type – defines type of the field. By default it is set to "TEXT".

• TEXT - regular text field.
• OMR - stands for (Optical Mark Recognition) and defines fields with optical marks in form of check-boxes and circles.
• TABLE - defines table field and applicable for locating and capturing the data from tables.

Anchor text – defines field's anchor and should contain value (text) exactly as it mentioned on the Document sample.

Anchor text field supports as plain text values, as well as regex-based values. Regex-based value have to start with "regex:" prefix (e.g.: value "regex:INV(O|0)ICE" will serve as anchor text for both variants of the labels: INVOICE and INV0ICE).

While moving anchor selection box over the document sample - system automatically captures selected text and focuses anchor selection box exactly to the matching text.

By selecting the Image-based match checkbox system will try to use graphical images of the selected region for locating the same region while document processing. It is not recommended to use this approach,

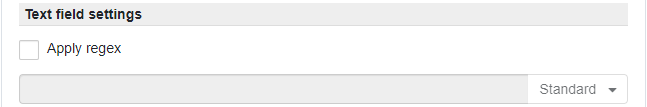

Text field settings

Apply regex – defines whether to apply regular expression for the field value partial data extraction (e.g. only numbers without symbols, etc.) by entering regular expression into input field next to the checkbox. The following regex types are available:

• Standard - uses standard regex syntax rules. Named capturing-group should be used with the "value" name, e.g.: "(?<value>X)", where X is the target value which is to be stored as field's value (see more details on the Recognition tuning page).
• Bitap - uses embedded Bitap syntax rules (available only for Regex based RecoForm types). Bitap allows to extract partially matched data from the documents, which matches the defined pattern (with the defined number of mistakes). Bitap supports the following syntax:
  • \d - digits, [0-9]
  • \D - non-digits, [^0-9]
  • \x - letter characters, [a-zA-Z]
  • Example: in order to capture text "HKD235.90CR" from the document the expression "HKD\d\d\d.\d\dCR" is to be used with number of mistakes 1 or 2 (depends on the specific case). Using such settings will help to capture values like: "HKO235.90CR", "HKO235.90C", etc.

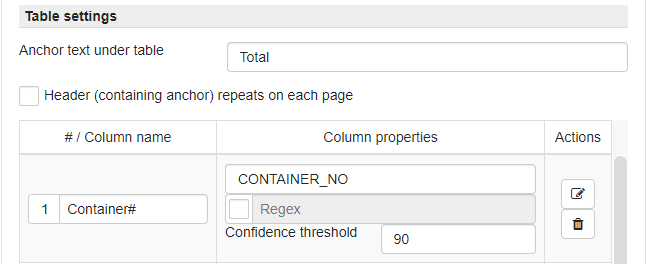

Table settings

Anchor under table - defines field or text which indicates table end

Header (containing anchor) repeats on each page - defines whether table has a header (with the marked anchor) which repeats on each subsequent page.

By using columns management controls - columns can be added for the given table. Columns have the same parameters as a regular text fields: Name, Tags, Regex and confidence threshold.

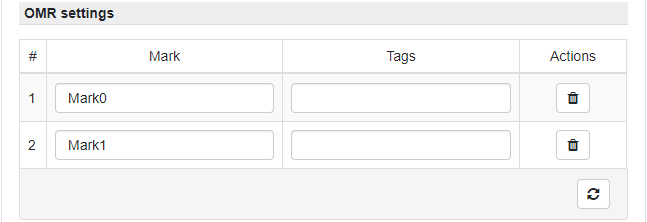

OMR settings

Detect marks - button runs automatic detection of the check-marks in the selected region on the document sample.

Delete - button deletes check-mark for which it was pressed.

Check-marks table provides controls for defining check-mark field name and its tag(s).

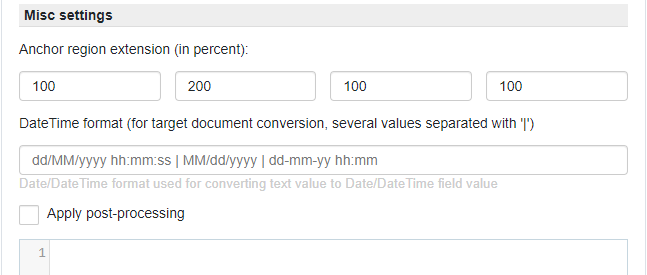

Misc settings

Anchor region extension (in percent) - defines percentage for extending the area for searching the anchor relatively to its position defined on the document sample. Has the following order from left to right: Top, Right, Bottom, Left. By default has the following values: Top (180%), Right (25%), Bottom (180%), Left (25%).

DateTime format (for target document conversion, several values separated with '|') - defines date/time format(s) for the field in case current field captures text which represents date/time value. Used when conversion is enabled for the given RecoForm and target field is of the date/time format.

Apply post-processing - defines whether to use field post-processing using JavaScript code (see Recognition results post-processing page for more details).

Post-processing settings

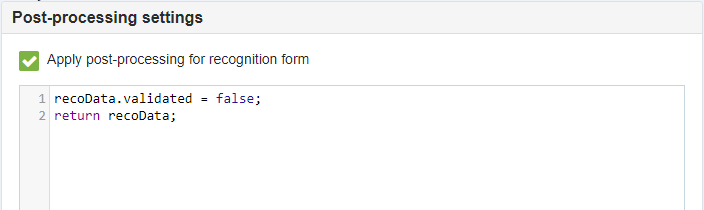

Post-processing settings area provides functionality for defining post-processing code for the recognition results captured using the current form. For more details on the post-processing functionality see Recognition results post-processing page.

Apply post-processing for recognition form - defines whether to apply post-processing for the document recognition result when it was matched using the current RecoForm.

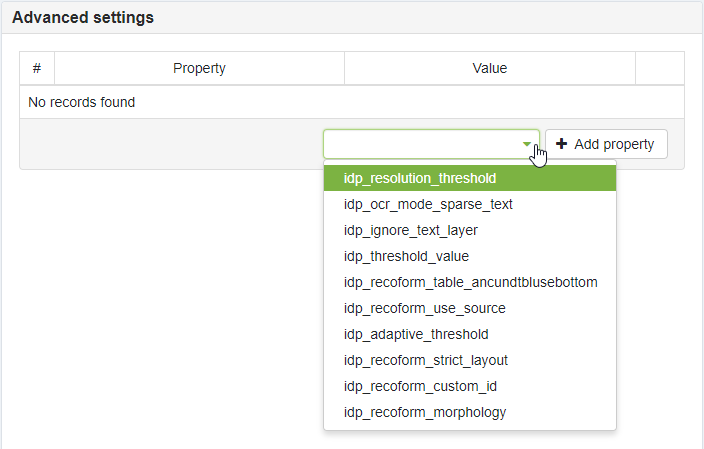

Advanced settings

Advanced settings area provides functionality for adding/editing/removing advanced settings for the RecoForm. For more details on the advanced settings see Advanced recognition settings page.
